B2 Biological Safety Cabinet Manufacturer,Supplier and Exporter in Uk
Product Code : DS-FHASC-10140

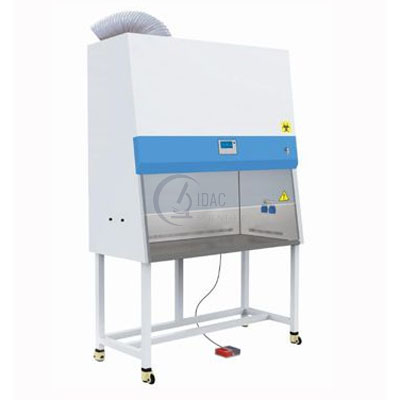

B2 Biological Safety Cabinet
Description:
Three protection: operator, sample and environment. Airflow system: 0 % air recirculation, 100% air exhaust B2 Biological Safety Cabinet has higher class of safety protection compared with type A2, it may be used for work with volatile toxic chemicals and radionuclides as required as adjuncts to microbiological studies.
Advantage:
1. Motorized Front Window.
2. Time Reserve Function.
3. Automatic air speed adjustable with filter block.
4. Foot Switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.
5. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
6. HEPA Filter life and UV Life indicator.HEPA Filter life and UV Life indicator.
7. Most accessories are standard. No need to pay more, save your money.
8. Remote Control. All functions can be realized with it, making the operation much easier and more convenient.
9. HEPA Filter life and UV Life indicator.
10. Interlock Function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.
Specifications:
Internal Size
(W*D*H)
940*600*660 mm
1150*600*660 mm
1350*600*660mm
1670*600*660 mm
External Size
(W*D*H)
1100*750*2250mm
1300*750*2250mm
1500*760*2250mm
1820*750*2250mm
Tested Opening
Safety Height = 200 mm（8’’）
Max Opening
420mm(17’’)
420mm(17’’)
500mm(20’’)
480mm(20’’)
Inflow Velocity
0.53±0.025 m/s
Down flow Velocity
0.33±0.025 m/s
HEPA Filter
Two, 99.999% efficient at 0.3 um.
Filter life indicator.
Front Window
Motorized. Two-layer laminated
toughened glass ≥ 5mm. Anti UV.
Noise
EN1246949 ≤ 58 dB / NSF49 ≤ 61 dB
UV Lamp
30W*1
30W* 1
40W* 1
40W*2
UV timer, UV life indicator,
emission of 253.7 nano meters
for most efficient decontamination.
Illuminating Lamp
LED Lamp
LED Lamp
LED Lamp
Fluorescent Lamp
12W*2
14W*2
16W*2
40W*2
Illumination
≥1000Lux
Consumption
700W
850W
900W
1200W
Waterproof Sockets
Two, total load of two sockets:
500W
Display
LCD display: exhaust filter and
down flow filter pressure, filter and UV lamp working time,
inflow and down flow velocity,
filter life, humidity and temperature, system working time etc.
