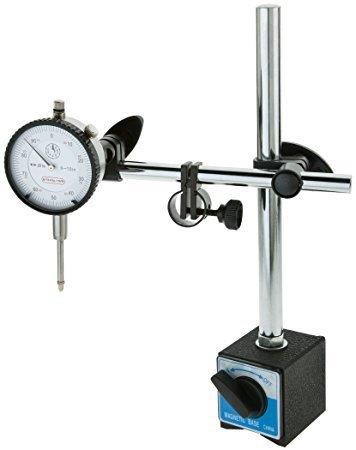

Dial Gauge with Magnetic Stand Manufacturer,Supplier and Exporter in Uk
Product Code : DS-EE-11549
Quick Answer: The Dial Gauge with Magnetic Stand reads 0-10 mm with a least count of 0.01 mm and comes with a magnetic base stand of 132 lbf magnetic force and an on/off switch.
Last updated: October 2026
Key Features
Range 0-10 mm, least count 0.01 mm
Hard coated dial crystal to resist scratches
Magnetic stand with 132 lbf magnetic force
On/off switch for mounting and dismounting
Stand accepts .375 inch, 6 mm or 8 mm stems, or lug backs with a 1/4 inch hole
Technical Specifications
Specification
Value
Range
0-10 mm
Least count
0.01 mm
Material
Steel
Magnetic force
132 lbf
Stems accepted
AGD-type, .375 inch, 6 mm or 8 mm diameter
Lug back mounting hole
1/4 inch
About This Product
The dial gauge is mounted on the magnetic stand and its probe is brought against the work to read movement to 0.01 mm over a 0-10 mm range. The on/off switch fixes or releases the base for quick mounting and dismounting, and the 132 lbf holding force helps prevent damage to indicators from the base falling over.
Frequently Asked Questions
Q1. What is the range of the Dial Gauge? It reads 0-10 mm with a least count of 0.01 mm.
Q2. Which indicators fit the Magnetic Stand? It accepts AGD-type dial indicators, test indicators and probes with .375 inch, 6 mm or 8 mm stems, or a lug back with a 1/4 inch mounting hole.
